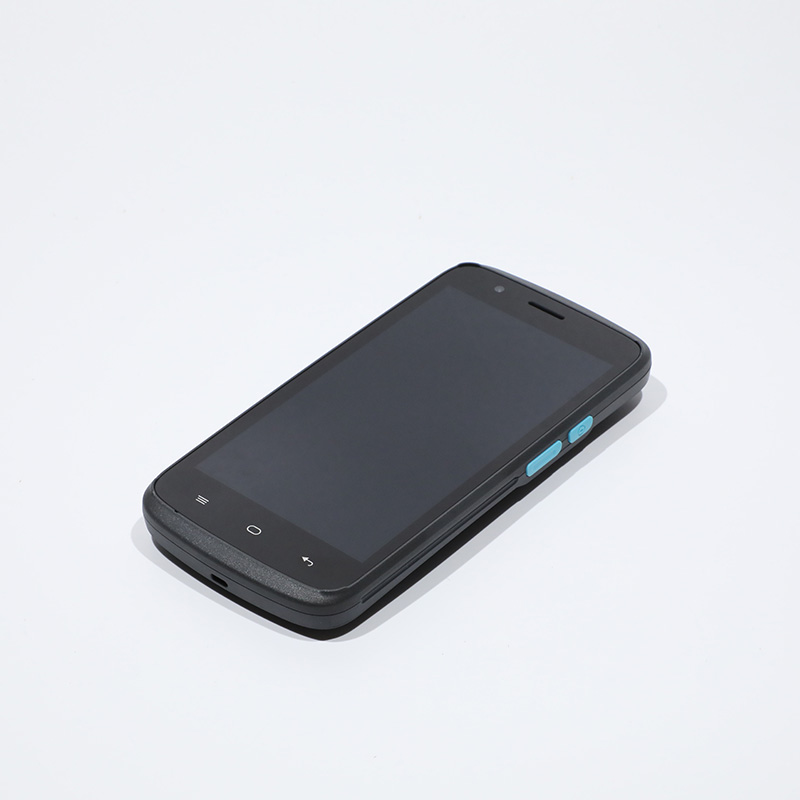

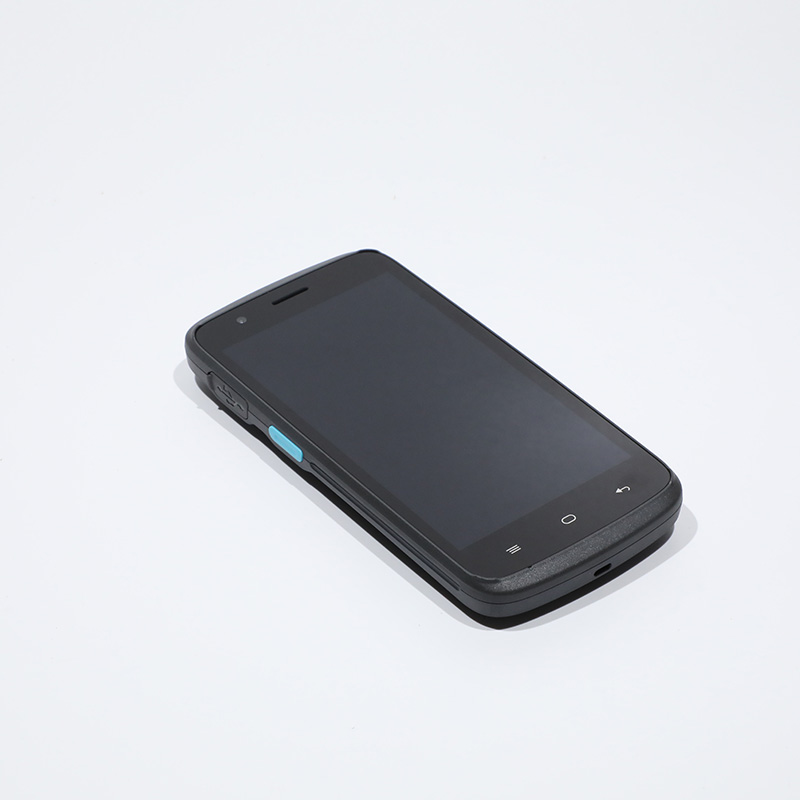

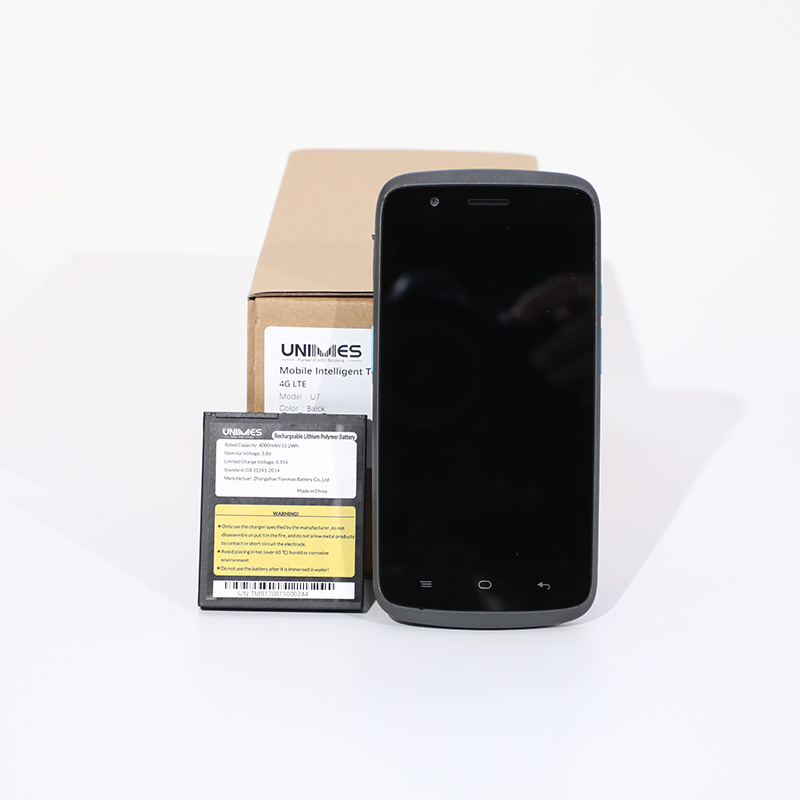

Unimes U7 is a solid and reliable handheld mobile computer pefectly integrates Android OS and 4G wireless communication thechnology. With 5.0 inch screen and fingerprint identification, all the information at your fingertips and bringing extraordinary quality.

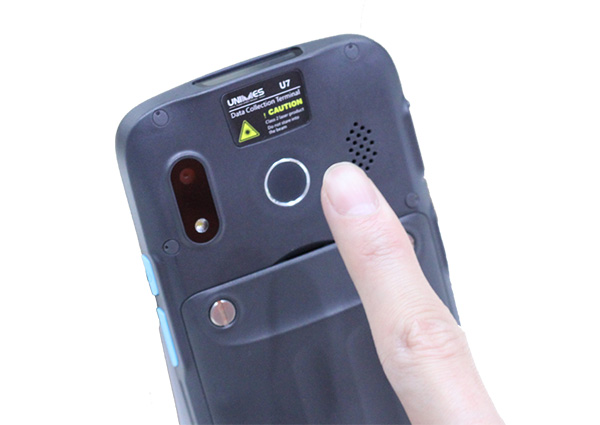

A new fingerprint minutiae matching algorithm is proposed, which is fast, accurate and suitable

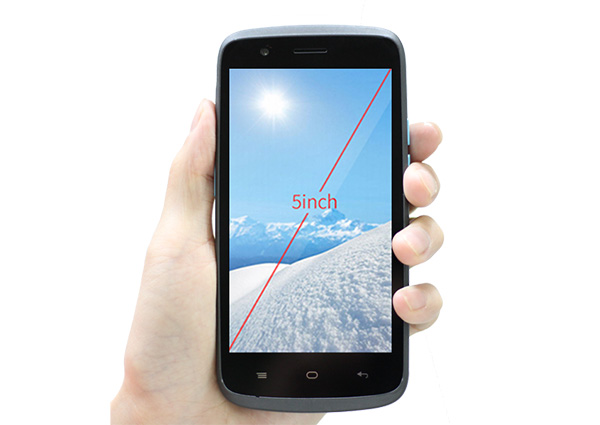

Advanced Capacitive Touchscreen
5”HD (720x1280)
Industrial grade sensitivity
Works with gloves and wet fingers

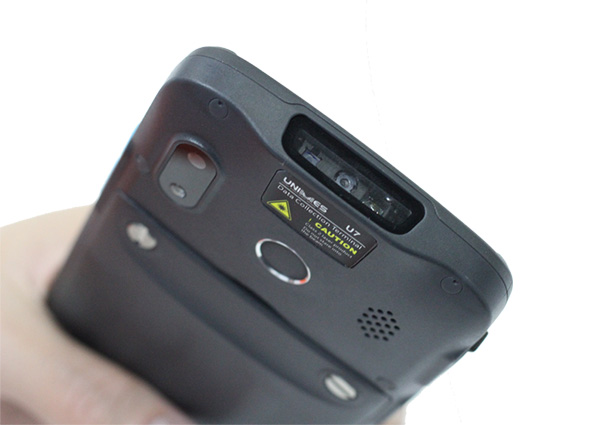

1D or 2D scan engine.
8MP rear camera and 2MP front camera.
Decode all types of 1D/2D barcodes with high motion tolerance. The click-to-scan button makes the scanning operation easy and natural.

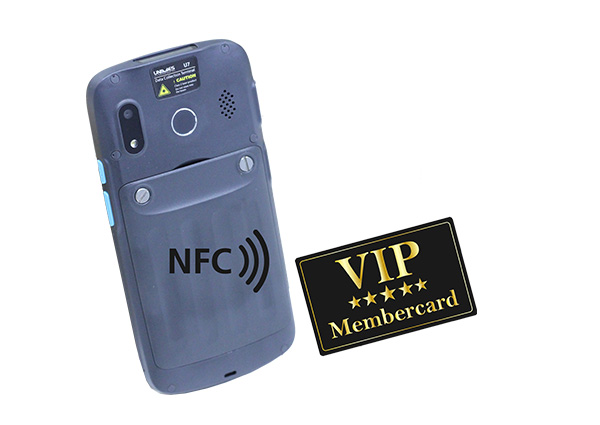

The highly responsive NFC module can read and write many cards including ID card which is with ISO/IEC 14443 TypeA, type B, iso15693 protocol.
Peer to peer mode
Card emulation mode
Reader mode
This enables U7 to realize numerous functions such as e-payment and personal identification etc.

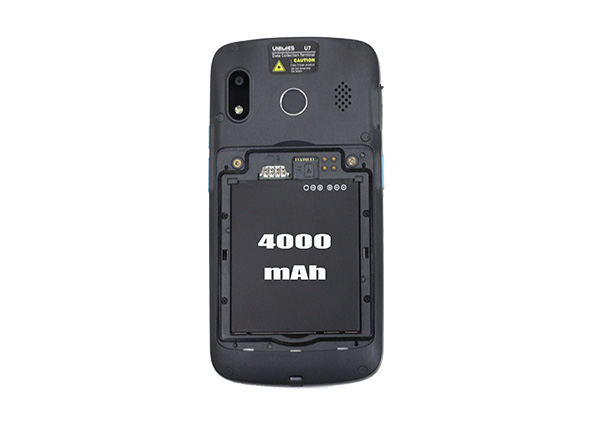

4000mAh mAh battery, it can support as long as 8~10 ;hours working time.
10W wireless fast charge, easy to get rid of the shackles of wires, recharge the battery at any time
| Peformance Parameter | |
| Operating system | Android 6.0 |
| Processor | 1.45GHz Quad Core |
| Memory | 2G RAM+16G ROM |
| Extended slot | Micro SD card, up to 32 G |
| Physical Parameter | |
| Display screen | 5"1280x 720 TFT QHD touch screen |
| Cameraloptional) | 8M pixel rear camera, 2M pixel front |
| Input method | English, Arabic input method, and handwriting input |
| Battery | Unloadable 3.7V 4000mAH lithium battery |
| Dimensions | L 153mm x W 76mm x T14mm |
| Weight | 240 (lstandard battery included) |
| Key | 1 power key, 2 side scanning keys |
| Power adapter | Input: AC 100 - 220V 50/60Hz; Output: DC 5V-2A |
| Notification | Speaker, indicator light and vibration |
| Interface(optional) | Micro USB 2.0, USB OTG, Micro SD/TF card |
| Environmental Parameter/IP Rate | |
| Working Temperature | Working:-20°C - 60 °C |
| Storage Temperature | Working:-40°C - 80 °C |
| Electrostatic | ±15kV air discharge, ±8kV direct discharge |
| Relative humidity | 5% - 95%RH |
| Protection grade | IP65 grade |
| Anti-dropping | 1.2m (On concrete ground) |
| Strength of anti-rolling | 1m(More than 800 rolling by impact force) |
| Communication Data Parameter | |
| WIFI | IEEE 802.11 b/g/n |
| Bluetooth | Bluetooth 4.0 +EDR |
| WWAN | GSM:900MHz,1800MHz,1900MHz CDMA:800MHz TDSCDMA:2GHz WCDMA:I,II,V,VIIITDLTE:Band 38,Band 39,Band 40,Band 41(2555-2575 MHZ,2575-2635 MHZ,2635-2655 MHZ) LTEFDD:Band 1,Band 3 |
| Data Sheet | |||
| U7 Data Sheet | Rev.N | 204KB | 21 Downloads |
